Van Damme VDM PA Con 19-pol Bajonet + Lockring female
incl. VAT
136€
- Van Damme Mil DTL 5015 multipin military connector
- NB Crimp contact pins available separately
- for L-Acoustics 6 channel signal transmission
Van Damme 8-pole and 19-pole PA-Cons were originally developed for L-Acoustics to support amplifiers and speakers in their line array PA systems. They are compatible with the originally specified CA-Com connectors, with improved features such as the rubberized “Arctic locking ring” and the more robust strain relief of the gland. The 8-pin connector is also used by d&b audiotechnik.
In over 200 shows, with 56 lines running every night, in over 60 freight moves to more than 30 countries on every continent on the planet, and with the best part of 200 ins and 200 outs, including at least 90 festivals, we didn't lose one line.
Not one mic cable, one XLR, one multipin line. Nothing broke.
It's nothing short of astonishing.
- Van Damme Mil DTL 5015 multipin military connector
- Heavy-duty metal connector optimized for 4 or 6-channel line/mic signals
- for L-Acoustics 6 Channel Signal Distribution
- Positive bayonet locking by roller pins with audible click after insertion
- Compatible with other Mil-DTL-5015/VG95234 bayonet connectors
- NB Crimp contact pins available separately
- 4.00mm solder lugs
PA Con
Van Damme Military VDM Connectors

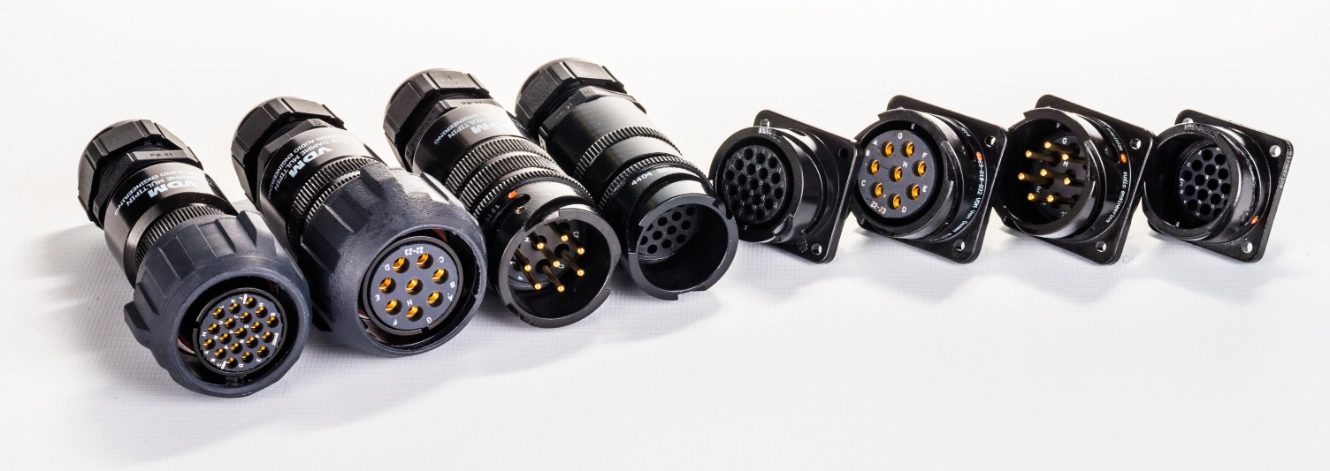

8-pin loudspeaker connection for high-current loudspeaker systems. 19-pin signal connector for 4 or 6 channel microphone/line signals. Compatible with Mil-DTL-5015/VG95234 bayonet plugs from other manufacturers. The 8-pin connector has silver-plated solder contacts. The 19-pin connector is a crimp connector with the same contacts as the VDM audio multipins, also available as a soldered version. Protection class IP65 when plugged in.
PA-Con 19 pole connectors
S369-190-011 PA-Con 19 pole female lock ring soldered with silver plated contacts
369-190-011 PA-Con 19 pole female lock ring
369-192-022 PA-Con 19 pole male lock ring
369-194-011 PA-Con 19 pole female bayonet
369-196-022 PA-Con 19 pole male bayonet
369-198-011 PA-Con 19 pole panel female
369-200-022 PA-Con 19 pole panel male
| Connector brand | Van Damme |
|---|---|
| Connector type | VDM PA Con 19-Pole female |
| Manufacturer | Van Damme |
