Monitor Controller
Van Damme Black Series Black Series 8-Pol VDM PA Con 8 x 4.00mm 15m
incl. VAT
570€
- Handmade in London UK
- Lifetime manufacturer warranty
- 8-Pol Van Damme Military VDM PA-Con Connector
- for L-Acoustics and d&b Audiotechnik
| Range | Preis | |
|---|---|---|
| Assemblies Mix & Match Discount | 5 - 9 | 541,50€ |
| Assemblies Mix & Match Discount | 10 - 14 | 524,40€ |
| Assemblies Mix & Match Discount | 15 + | 501,60€ |
Van Damme Black Series Tour Grade Multicore speaker cables offer a comprehensive selection of wire counts and conductor sizes to cover most low impedance speaker systems. In addition, the 18-core 1.50mm² and 2.50mm² multicore cables are designed for use with mains voltage for lighting dimmers to 19-pin fittings.
Van Damme 8-pole and 19-pole PA-Cons were originally developed for L-Acoustics to support amplifiers and speakers in their line array PA systems. They are compatible with the originally specified CA-Com connectors, with improved features such as the rubberized “Arctic locking ring” and the more robust strain relief of the gland. The 8-pin connector is also used by d&b audiotechnik.
In over 200 shows, with 56 lines running every night, in over 60 freight moves to more than 30 countries on every continent on the planet, and with the best part of 200 ins and 200 outs, including at least 90 festivals, we didn't lose one line.
Not one mic cable, one XLR, one multipin line. Nothing broke.
It's nothing short of astonishing.
- Handmade in London UK
- Lifetime manufacturer warranty
- Particularly robust and flexible
- The choice of leading PA companies
- transparent sound
- 41 A Peak Current
- 23 A Continuous load
- Particularly flexible and easy to roll up
- Van Damme Mil DTL 5015 multipin military connector
- Heavy-duty metal chassis connector for high-current loudspeaker signals
- compatible for L-Acoustics CA-Com and d&b Audiotechnik
- Compatible with other Mil-DTL-5015/VG95234 bayonet connectors
- 8-pin plug connector with silver-plated solder contacts
HARD TOURS
The Black Series Tour Grade is characterized by its low weight, flexibility with high robustness and transparent sound. It is used by UK’s PA companies such as Skan PA, Wigwam Hire, SSE, Britannia Row. The Black Series is also a trusted partner on the BBC and on Muse and Coldplay tours.

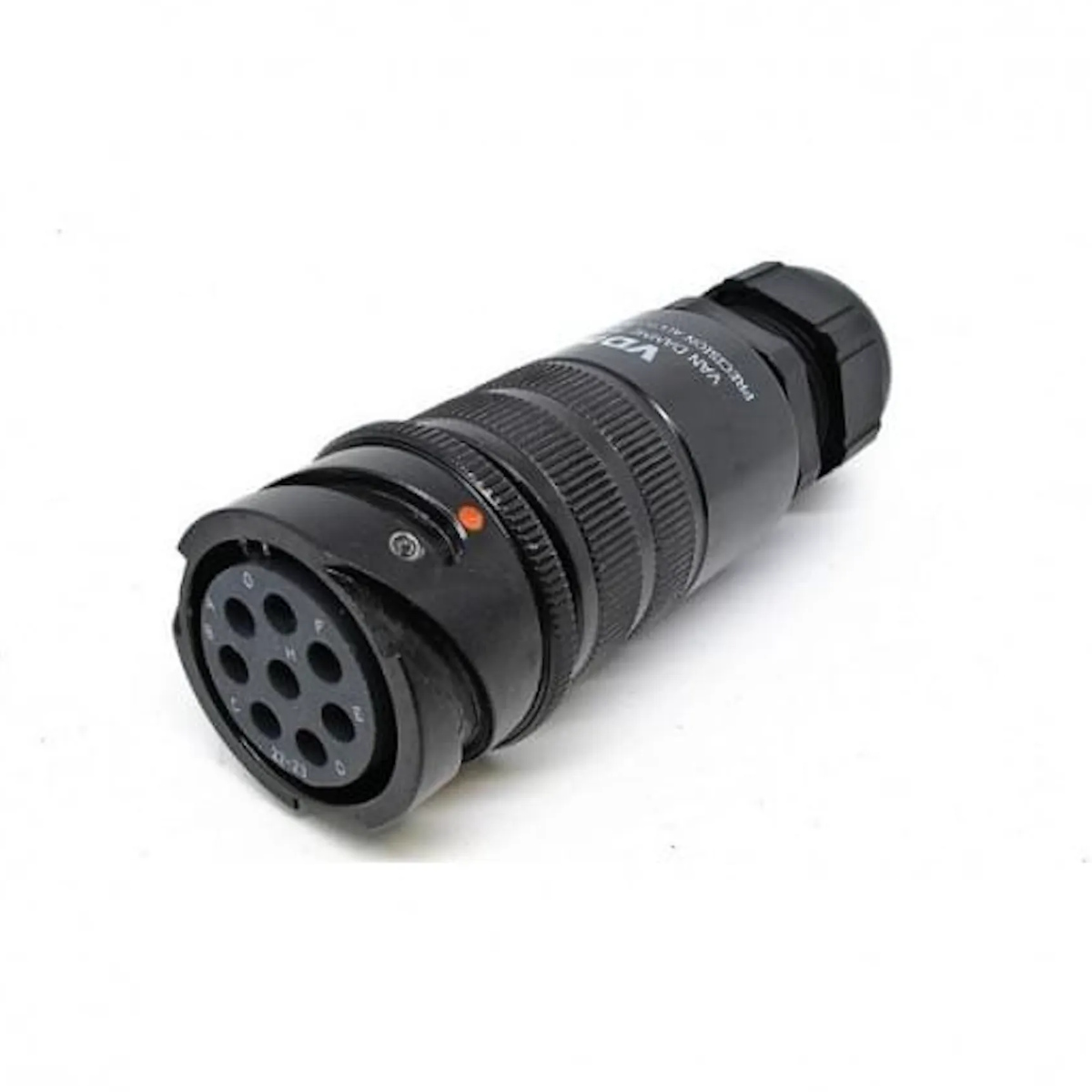

PA Con
Van Damme Military VDM Connectors
8-pin loudspeaker connection for high-current loudspeaker systems. 19-pin signal connector for 4 or 6 channel microphone/line signals. Compatible with Mil-DTL-5015/VG95234 bayonet plugs from other manufacturers. The 8-pin connector has silver-plated solder contacts. The 19-pin connector is a crimp connector with the same contacts as the VDM audio multipins, also available as a soldered version. Protection class IP65 when plugged in.
| Multicore | 8 |
|---|---|
| Jacket | Flexible PVC, Neoprene composite |
| Conductor cross-section (mm2) | 4mm |
| Overall diameter | 17.70 mm |
| Color | Black |
| Degree of bending | 10 x overall diameter |
| Connector Brand | Van Damme |
| Connector Type | VDM PA Con 8-Pole female, VDM PA Con 8-Pole male |
| Length | 15 |
| Manufacturer | Van Damme |
| Gold-plated / silver-plated | silver-plated pins |
| Signal Level | Speaker Level |
| LSZH / FRNC | No |
| Qty of Poles | 8 |
| Angled | no |
| min. Operating temperature (⁰C) | -20 |
| Max. operating temperature (⁰C) | 70 |
