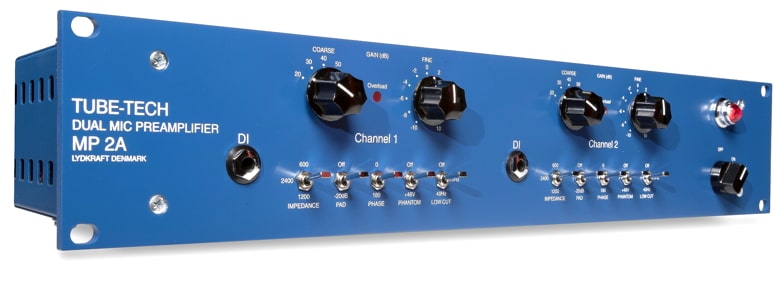

Tube-Tech MP 2A | 2-channel microphone preamplifier
incl. VAT
4.079€ 3.956,63€
- All-tube technology
- “Push Pull” PreAmp
- Selectable microphone impedance: 600 / 1200 / 2400 Ohm
TEST DEVICE AVAILABLE
This 2-channel microphone preamplifier offers the warm, fine tube sound that is so sought after in many recordings.
In addition to microphone inputs, the device also has DI inputs for the direct connection of guitars, which benefit wonderfully from the lively tube sound.
The amplification of up to 70dB provides sufficient reserves for microphones with a low level.
LF attenuation: The high-pass filter can be selected between off, 20Hz (12dB/octave) and 40Hz (6dB/octave).
Phantom: The phantom switch switches the +48V DC supply on and off.
The +48V DC is fed to the microphone input via two 6.81 KOhm resistors.
PAD: This switch switches a 20dB attenuation between the microphone and the input transformer.
PHASE: Inverts the phase at the microphone input by 180 degrees.
The DI input is not affected.
IMPEDANCE: The microphone input load impedance can be selected between 600, 1200 and 2400 ohms.
- Mic gain adjustable in 2 dB and 10 dB steps
- Microphone impedance: 600 / 1200 / 2400 Ohm
- switchable 20 dB PAD
- Phase inversion
- High-pass filter: 20 Hz / 40 Hz
- High-impedance instrument input (DI) with gain range
from +10 dB to +60 dB - Overload indicator (red LED) per channel
- Phantom power +48V
PUSH PULL EQ
- The gain switches have a range from +20dB to +70dB.
- Coarse gain 10dB/steps (20-60dB) and
- Fine gain 2dB/step (+10/-10dB).
| Weight | 6,1 kg |
|---|---|
| Dimensions | 54 × 26 × 8,8 cm |
| Color | Blue |
| Tube | Yes |
| Channels | Dual-Mono |
| Connections | XLR |
| Format | 19inch |
| Manufacturer | Tube-Tech LYDKRAFT |
| Rack Units (RU) | 2 |
| Recall - Remote | No |
| No. of Mic Inputs | 2 |
| Signal Level | Instrument Level, Mic Level |
| Stereo Link Option | No |
| No. of Instrument Inputs | 2 |
| Ribbon Option | Yes |
| Sends | No |
| Returns | No |
| Stepped potentiometers | Yes |
| max Gain in dB | 70 |
| Sidechain Int | No |
| Sidechain Ext | No |
| Mix Dry/Wet | No |
| Application of use | Recording |
