Schoeps V4 U SGV Set | Studio Vocal Mic Blue with Holder
incl. VAT
2.799€
- Small diaphragm condenser with holder
- Capsule head with adjustable tilt angle

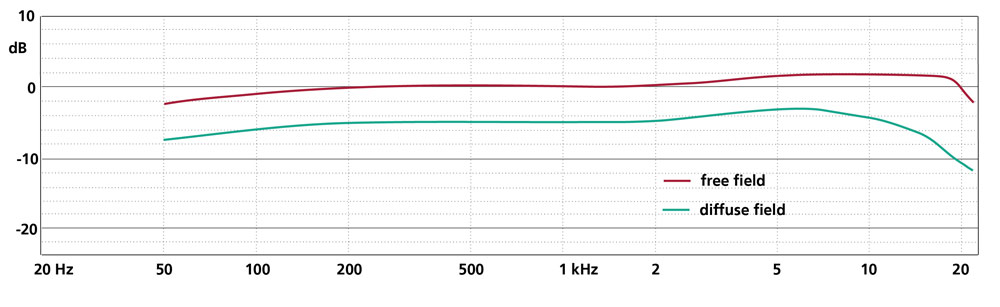

- Optimal 0° frequency response with slight treble boost
- Studio vocal microphone
The V4 U is the studio vocal microphone from Schoeps. It combines the outstanding technical features typical of Schoeps with a timeless, classic design. The appearance of the V4 U is based on the Schoeps CM 51/3 microphone from 1951, but it is a modern cardioid microphone: capsule, electronics as well as the mechanics are the result of an elaborate new development.

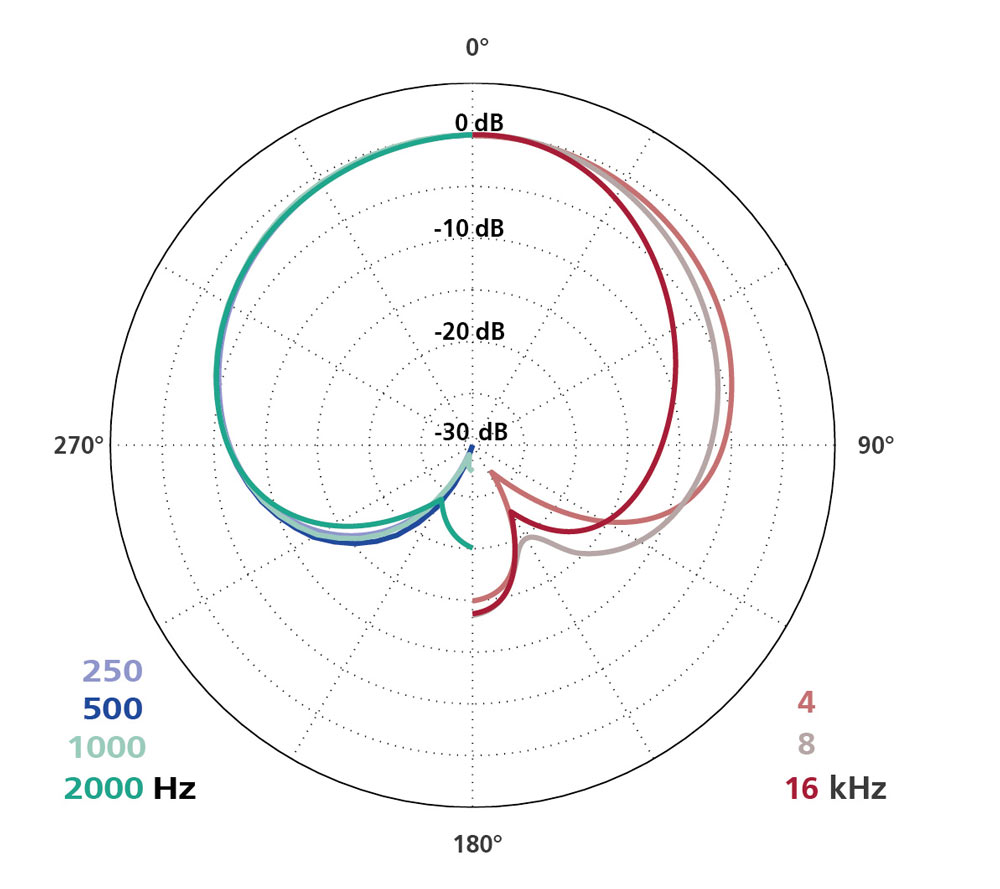

The capsule has a 33 mm annular disc integrated, which ensures that gradual focusing is achieved at high frequencies, similar to a large-diaphragm microphone. Thereby the Advantages of a small diaphragm capsule preserved. Frequency response and polar diagram are extraordinarily uniform. In addition, the internal capsule suspension structure-borne noise such as grip noise.

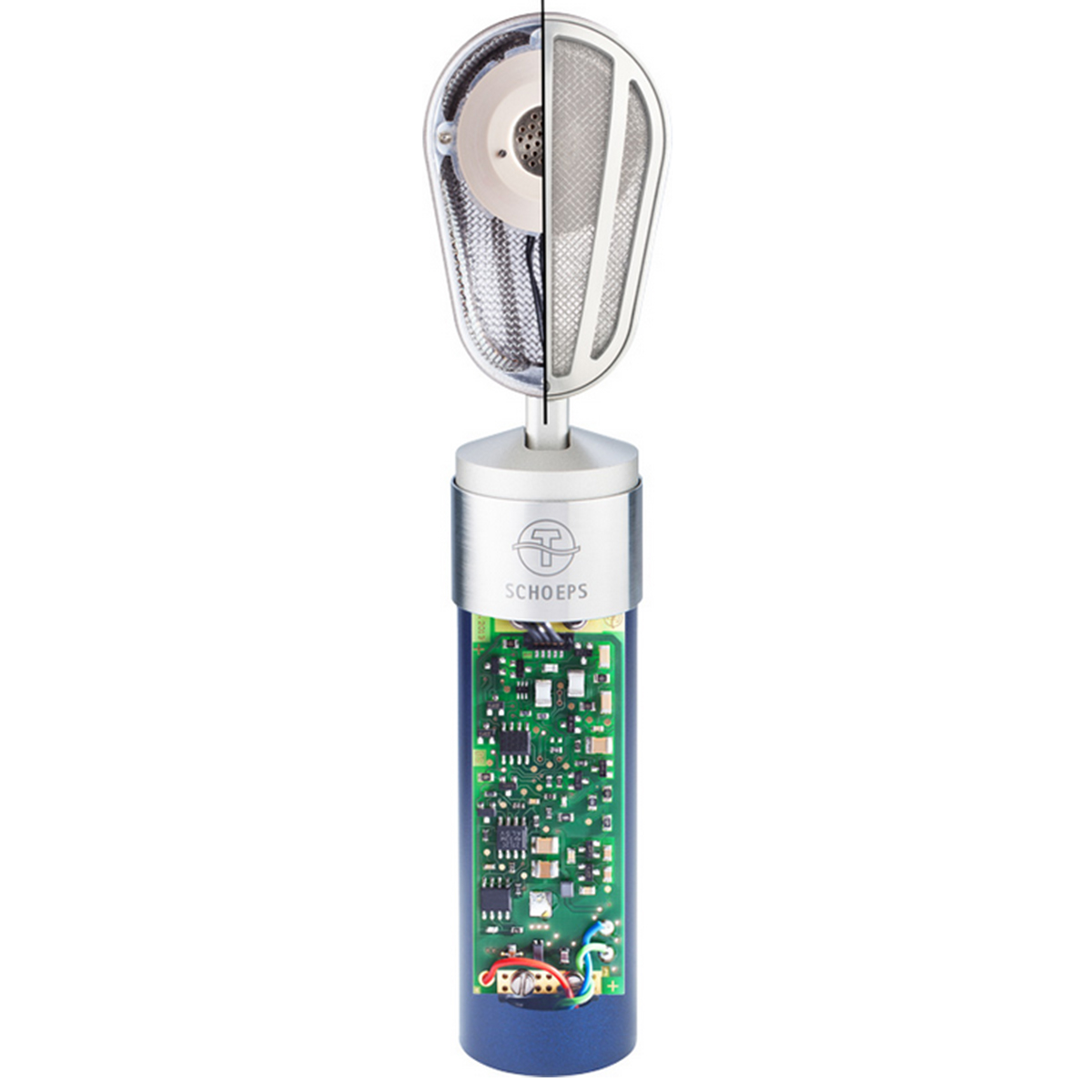

The internal electronics consists of anewly developed circuit design with bridge outputstage, which is free of output capacitors and iron. This gives the microphone a low, particularly frequency-independent output impedance as well as particularly high unbalance attenuation. It features high immunity to interference due to gapless shielding and has a modern EMC filter with very good characteristics in the output. Themaximum sound pressure level is 144 dB SPL, which corresponds to an output level of 4.8 V.
No. 191102 Special colors: are available in the configurator ready
- Polar pattern: cardioid
- Frequency range: 50 Hz – 22 kHz
- Sensitivity: -36 dB (V/Pa), 16 mV/Pa
- Substitute noise level (A-weighted): 15 dB
- Replacement noise level (CCIR): 25 dB
- Noise level distance (A-weighted): 79 dB
- Limiting sound pressure level (THD < 0.5%):144 dB SPL
- Max. Output voltage: 4.8 V (5 dbV) at 1 kΩ load
- Low Cut: 40 Hz, 18 dB/oct.
- Smallest recommended load impedance: 1 kΩ
- Output impedance: 50 Ω
- Maximum cable length: > 300 m
- Current consumption: 3.3 mA
- Common mode rejection outputs (CMRR) (at 1kHz): > 80 dB
- Output: XLR-3M
- Length: 194mm
- Diameter: 34mm
- Width capsule head: 45mm
- Weight: 302g
- Surface: blue
Scope of delivery: V4 U, SGV tripod clamp, Premium Case
| Manufacturer | Schoeps |
|---|---|
| Color | Blue |
| Converter principle | Condenser microphone (FET) |
| Phantom Power | Yes |
| Tube | No |
| Highpass | Yes |
| Pad | No |
| Characteristic switchable | No |
| Directional characteristic | Cardioid |
