Monitor Controller
PSI Audio A17-M – Pure White
incl. VAT
2.049€
- active 2-Way Studio Speakers
- 5.1″ woofer + 1″ tweeter
- active phase correction (CPR system)
The A17-M was developed to generate the highest possible sound pressure and a wide bandwidth in a compact housing. It is perfect for applications with limited space that still require the best in precision and reliability. The A17-M works perfectly with subwoofers such as the A125-M for extra punch in the deepest bass ranges. As a nearfield monitor, the speaker is ideal for recording, production, mixing and home listening.
These speakers are also available on request with Special painting in RAL color possible (20% surcharge)
- System: active, 2-way
- Amplifier (RMS power): 80W + 40W
- Driver: 5.1″ woofer + 1″ tweeter
- SPL: 103dB (single)
- Frequency response (± 2.5 dB): 50Hz – 20kHz
- Phase (tolerance ±45º): 180Hz – 20kHz
Active monitor
WITH HIGHEST PRECISION
The development and handmade production of PSI Speakers takes place in the manufactory in Switzerland.

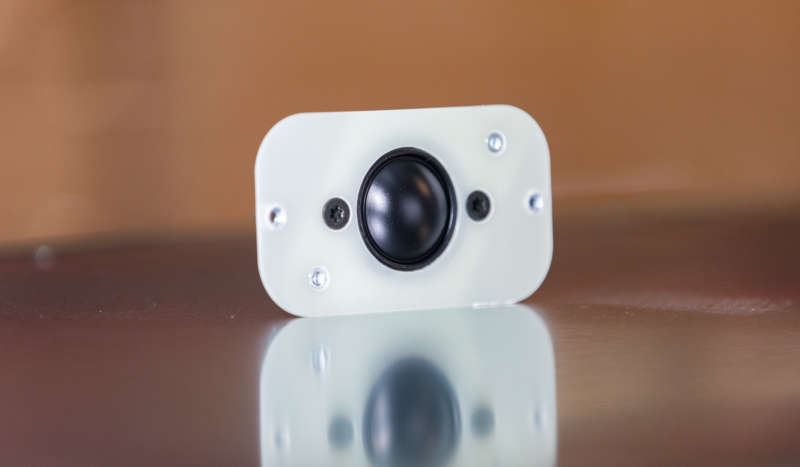

The 1″ large tweeter was specially developed and offers unparalleled clarity, subtlety and fidelity.
Down to 50 Hz, the A17-M’s 7″ woofer impresses with a very transparent bass response for its size.
AOI, CPR, G/H - for highest quality
The A17-M has all the technical achievements that are built into the entire range of PSI Audio precision studio loudspeakers. This includes:
Adaptive Output Impedance (AOI)
This system monitors the diaphragm movements in relation to the input signal and thus enables exceptionally precise sound reproduction.
Compensated Phase Response (CPR)
This ensures that all spectral elements of the incoming signal are output in the correct phase in order to avoid unwanted changes in the sound of the source material. The entire technology works in an absolutely analogue way.
G/H power amplifiers
The same applies to the Class G/H power amplifiers, which combine the advantages of Class AB with lower distortion and increased efficiency.
Together with the Swiss craftsmanship and the complex calibration of each individual loudspeaker in an anechoic chamber, these technologies enable an unimagined precision in sound reproduction.
| Weight | 9,5 kg |
|---|---|
| Dimensions | 30 × 30 × 44 cm |
| Color | Pure White |
| System | active |
| Connections | XLR |
| Room adjustment | |
| Manufacturer | PSI Audio |
| Construction | Bass reflex |
| Signal Level | Line Level |
| Amp Class | G/H |
| RMS Power | 120W |
| Driver size | 5 inch |
| max. SPL | 104 dB |
