MOTU 828ES AVB – USB & Thunderbolt Interface
1.249€
- AVB Interface
- ESS Sabre32 Ultra DAC technology
- USB 2.0 & Thunderbolt 1+2

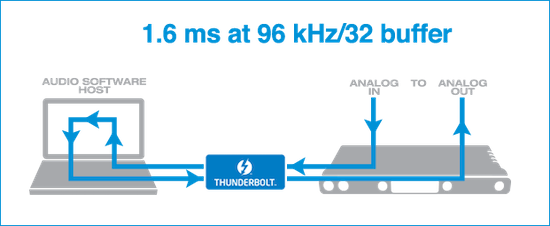

- 1.6 ms roundtrip
Out of stock
60 audio channels. Expandable up to 512.
The MOTU 828ES is a state-of-the-art audio interface with optional support for AVB networks. The ESS Sabre32 Ultra AD/DA chips, which are otherwise found in much higher priced interfaces, offer 24-bit resolution and a sampling rate up to a maximum of 192 kHz.
The Motu 828ES can be expanded with further 828ES or other devices of the MOTU AVB series. If the 60 channels of the 828ES are not enough or if you need more PreAmps, you can expand up to 512 audio channels.
The DSP Mixer, whose interface is operated via an Internet browser or the MOTU App (iOS + macOS), offers extensive routing options up to virtual outputs and inputs.
- 28 inputs
- 32 outputs
- 2 preamps (mic level, instrument level)
- Preamps with pad and 48v phantom power
- 2 analog sends
- 2 main outs
- 2 separately adjustable headphone outputs
- S/PDIF IN & OUT
- integrated monitor controller with A/B, mute, mono function
- high resolution display with meter presets
- USB 2.0 & Thunderbolt
- AVB Network
- MIDI interface
- Word clock IN / OUT / THRU
- S/PDIF
- ADAT & Toslink F05
- timecode IN / OUT
- virtual inputs and outputs
- almost endless routing options
- DSP mixer with effects
MOTU CUEMIX

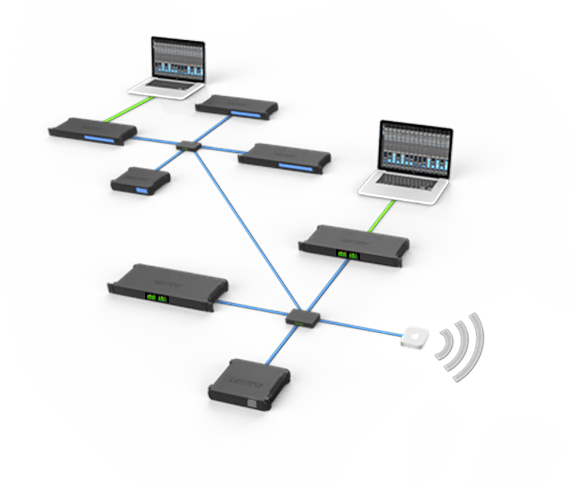

AVB NETWORK

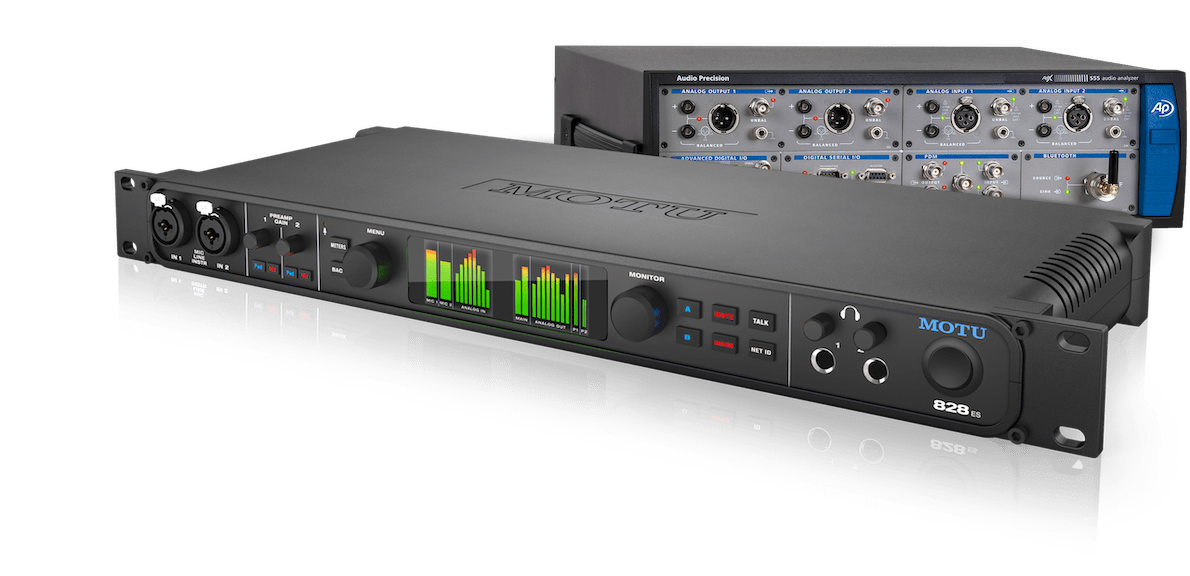

NEW PREAMP DESIGN
Record your recorded material in its most natural form with -108dB THD+N, 118dB Dynamic Range and -128dBu EIN performance. Each mic channel has individual preamp gain, pad, 48V phantom power, and digital remote control. Are you working with outboard EQs and compressors? Each 828es mic input provides a preamp and hardwired send for mono or stereo mic channel outboard processing.
MONITOR & ROOM CONTROL
The built-in talkback microphone and front panel talk button put you in control of your recording sessions. Connect two sets of speakers and check your sound mixes with the A/B speaker selector buttons on the front panel.

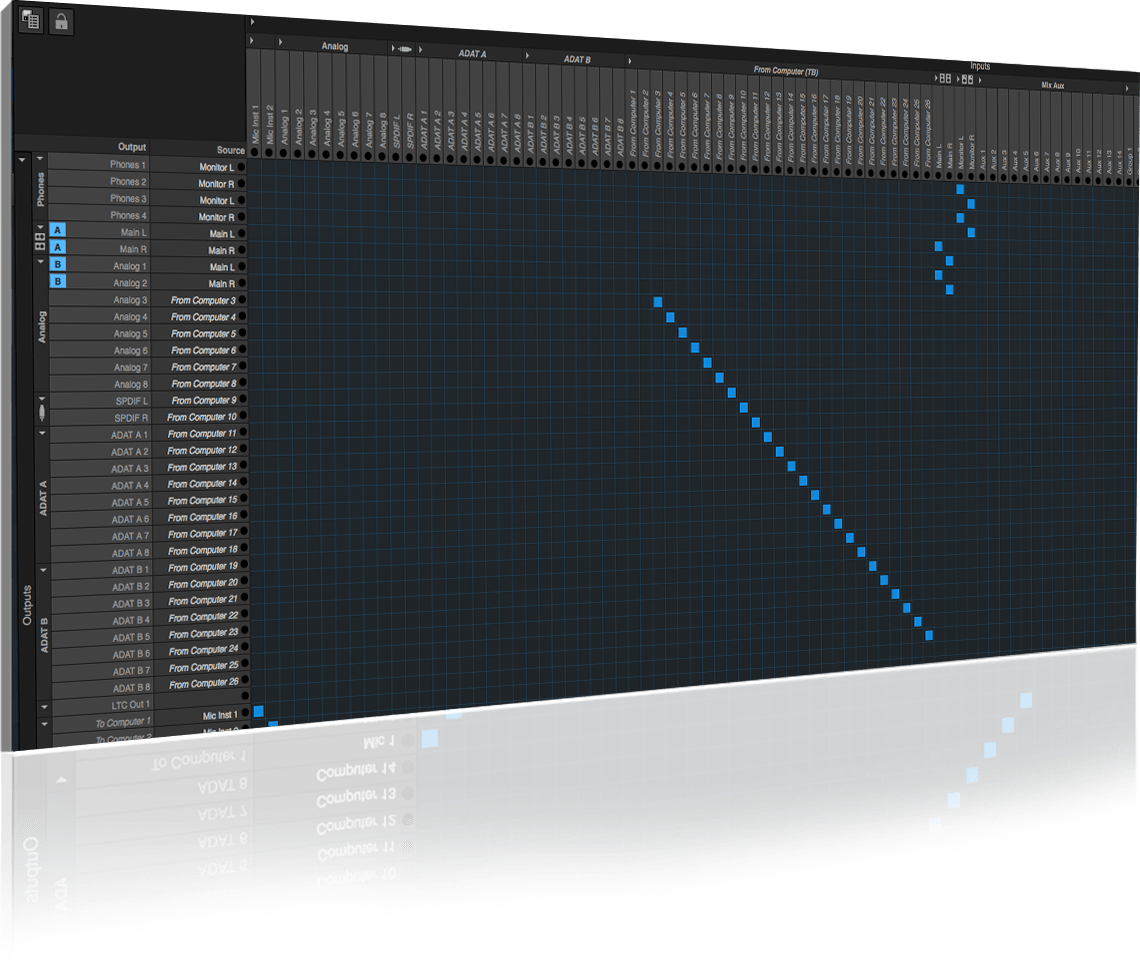

FLEXIBLE ROUTING
| Conversion | AD-Converter, DA-Converter |
|---|---|
| Headphone Jack | Yes |
| Transmission protocol | ADAT, AVB, BNC, MIDI, S/PDIF, TOSLINK F05 |
| Number of analog outputs | 10 |
| Number of analog inputs | 10 |
| Format | 19inch |
| Preamp | Microphone |
| Max. Samplerate | 192 kHz |
| Max. Bitrate | 24 Bit |
