Monitor Controller

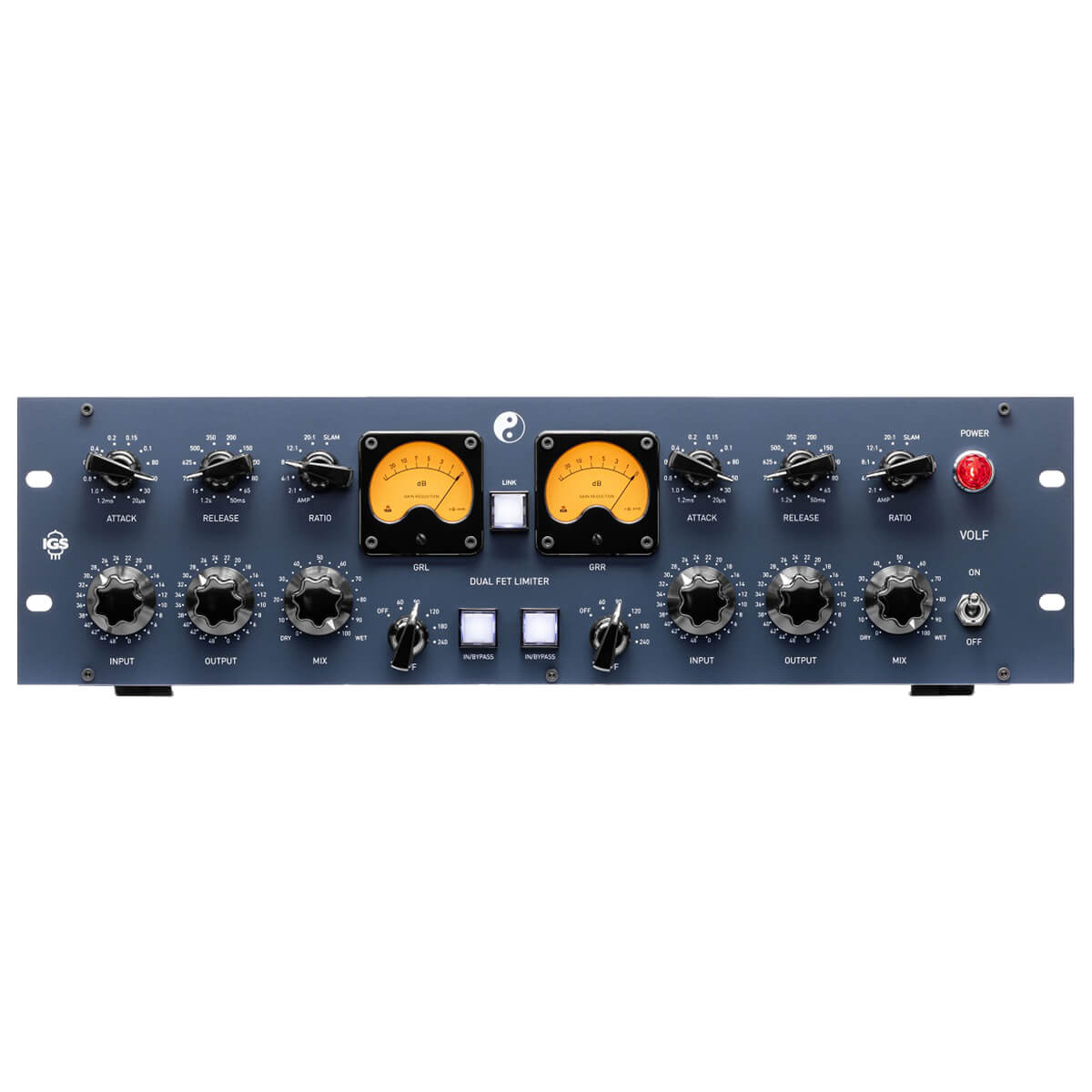

IGS Audio Volf | Dual FET Limiter
2.649€
- FET Compressor / Limiter 1176 / 1178 Style
- Switch from 1176 Revision A to H
- ELMA Switches
- Wet/Dry Mix
- Dual Mono with Stereo-Link
VOLF is a stereo compressor inspired by the legendary UREI 1176, known for its fast attack times and transparent compression. Designed to process bass frequencies with precision, VOLF captures the punch and warmth of the original 1176 while offering modern stereoflink capabilities, making it the perfect tool for studio and live sound applications. With its intuitive controls and robust construction, VOLF ensures that dynamics in the lower frequencies are smooth and controlled without sacrificing sonic richness.
- 24-stage ELMA switches manufactured in Switzerland
- Fully graduated controls for all parameters
- Switchable input mode between transformer-balanced and IC-balanced inputs
- AMP mode, which bypasses compression so that the signal is passed through the amplifier at 45 dB
- Discrete IGS 2520 operational amplifiers with extremely low noise in both amplification stages
- Link option for the stereo image balance
- Class A circuit
- UTM industrial input and output transformers
- Linear power supply
- Transistor: BF245A, matched quad transistor
- Step switches: Yes, 24-step ELMA switches
- Sidechain HPF: 240, 180, 120, 90, 60 Hz, Off
- Input impedance (balanced): 10 kOhm IC/UTM, switchable industrial transformers
- Output impedance (balanced): 600 Ohm, UTM industrial transformers
- Operating level: +4 dBu
- Maximum input level: +18 dBu
- Maximum output level: +18 dBu
- Maximum gain reduction: 30 dB
- Maximum gain increase: 45 dB
- Noise level: -110 dB A
- Attack time: 20 µs – 1.2 ms
- Release time: 0.05 – 1.2 s
- Frequency range: 8 Hz – 22 kHz ± 0.2 dB
- Signal-to-noise ratio (SNR): >84 dB
- THD: 0.12 %
- THD+N: 0.19 %
- Crosstalk: 80 dB
| Weight | 8 kg |
|---|---|
| Dimensions | 70 × 50 × 30 cm |
| Compressor Type | FET |
| Tube | No |
| Channels | Dual-Mono |
| Connections | XLR |
| Format | 19inch |
| Rack Units (RU) | 3 |
| Manufacturer | IGS Audio |
| Stereo Link Option | Yes |
| Recall - Remote | No |
| Signal Level | Line Level |
| Application of use | Mixing |
| Style | 1176 |
| Sends | No |
| Returns | No |
| Sidechain Int | Yes |
| Sidechain Ext | No |
| Mix Dry/Wet | Yes |
| Stepped potentiometers | Yes |
