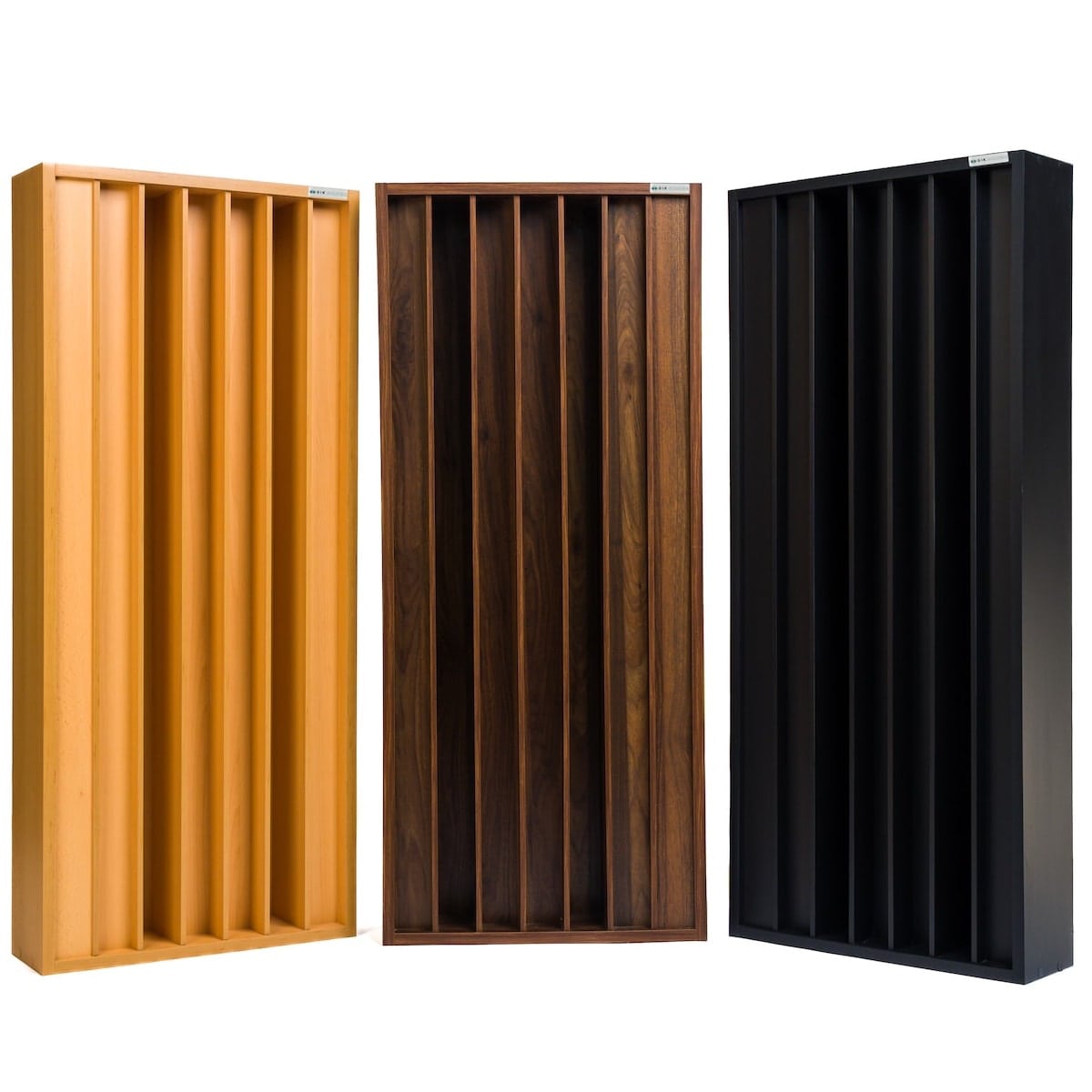

GIK Acoustics Q7d Diffuser – 117x50cm


2-3 weeks if you order today
  • Diffuser made of real wood laminate
  • effective range between 600 Hz and 7 kHz
  • available in 4 different colors


The Q7d diffuser is made from high quality real wood laminates, which are cut to size with CNC machines. This results in extremely low tolerances and an excellent appearance at a very fair price.

This diffuser is a 7 chamber QRD diffuser that starts working at about 600 Hz, provides effective uniform diffusion up to 3 kHz and scatters up to 7 kHz.

  • 7 chambers QRD diffuser made of wood
  • Color: walnut
  • Effective range: 600Hz – 7kHz
  • Dimensions (HxWxD): 1166 x 498 x 155 mm
  • Weight: 18kg

Noble & Effective

It is designed to be suspended in mirror-inverted pairs, allowing a larger area to be covered without repeating the chamber patterns and avoiding guide beam rotations.

The Q7d diffuser allows a large number of installation possibilities e.g. on rear walls, reflection points or behind dipolar or bipolar loudspeakers to solve specific problems. It can also be placed at typical locations of flutter echoes to avoid them.

The diffuser looks as good as it performs and is available in four finishes: black, white, beech and walnut. It is just as visually as technically appropriate in a living room, home studio or music room, as it is in a professional recording studio, editing room or auditorium.

Comparison of product features


Black, White, Beech, Walnut
