Black Lion Audio Micro Clock MK3 – Word Clock

966

🚚
Standard delivery
available immediately
Shipping information
🏆 #1 in Interfaces Converter
🏷️ Black Lion Audio
💰 Get 811 Gear Cois
🔢 Art.-Nr.: A70081 📋
  • Ultra-low jitter design
  • 8 selectable sample rates: 44.1 kHz to 384 kHz
  • 6 BNC outputs (75 Ohm)
  • RCA + Optical S/PDIF output
  • AES output

The Micro Clock MKIII is a significant revision of its predecessor, the Micro Clock MKII.
Key technological improvements include crystal oscillators with lower jitter, higher quality galvanic transformer isolation in the signal path, dedicated output drivers with better isolation, more precise signal splitting and much stronger noise filtering throughout the circuit.
All this results in a more robust clock signal with less jitter than the Micro Clock MKII, with even more desirable overtones in the clock signal’s spectral band, giving the conversion process an undeniable musical quality.
The feature set has been expanded to include an LED frequency display, six BNC outputs up to 384kHz, AES and RCA S/PDIF outputs up to 192kHz, an optical S/PDIF output up to 96kHz and detachable rack ears.

8 selectable sample rates (44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz)

  • Word Clock Generator of the latest generation
  • High musicality and detailed overtones
  • Ultra-low jitter design
  • 8 selectable sample rates
  • 6 BNC outputs (75 Ω) with separate output amplifiers for maximum isolation
  • LED display with frequency display
  • External 9VDC power supply unit (6W power consumption)

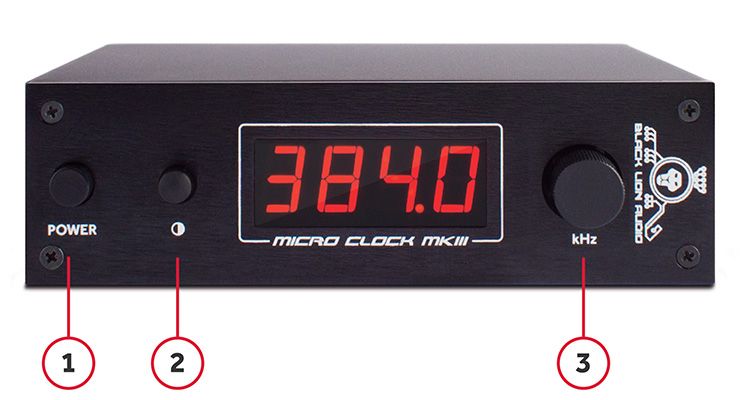

Front

  1. POWER
  2. DISPLAY CONTRAST
  3. FREQUENCY (kHz): Switch between the 8 selectable sample rates.

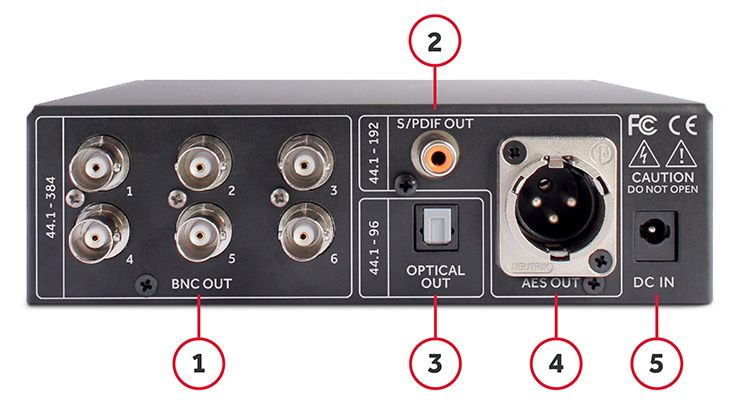

Rear

  1. BNC Out: 5V, 75Ω output; termination is optional (44.1kHz – 384kHz)
  2. S/PDIF Out: unbalanced RCA output (44.1kHz – 192kHz)
  3. Optical Out: optical S/PDIF output; does not support ADAT (44.1kHz – 96kHz)
  4. AES Out: balanced XLR output (44.1kHz – 192kHz)
  5. DC In: 9VDC center pin positive, input jack
Weight 1,8 kg
Dimensions 33 × 26,5 × 10,6 cm
Manufacturer

Black Lion Audio

Connections

AES/EBU, BNC, S/PDIF

Bus Powered

No

Format

Standalone

Max. Sampling rate

384 kHz
